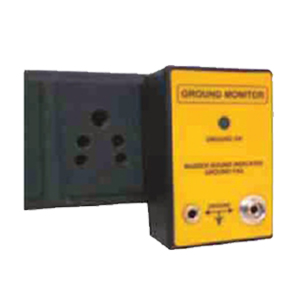

| Resistance | Built in 1 meg-ohm resistor for Personnel safety |
| Green LED | Earth is connected |
| Buzzer Alarm | Earth is FAIL |
| Input power | AC230V / 50 Hz |
| Dimensions | 82 x 55x 56 mm |
| Weight | 75 Gms |
| GREEN Pass | Resistance Between 0.75 to 10 Meg Ohms. |
| RED Fail | Resistance below 0.75 OR above 10 Meg Ohms |
| Buzzer Alarm | Sounds for open OR FAIL condition |
| Battery Status | By Dual Color LED |
| Test actuation | By pressing metal sensor plate |
| Accuracy | +/-10% |
| Power supply | 9 Volt Battery |

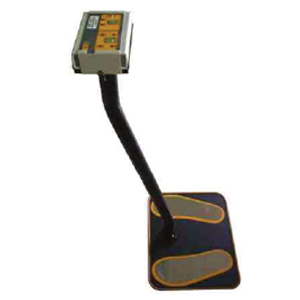

| Wrist Strap PASS Range | 1 to 10 Meg Ohms |
| Foot Wears PASS Range | 1 to 35 Meg ohms |
| Indications Pass | GREEN LED |
| LOW & High fail | RED LED with Buzzer sound |
| Test actuation | By pressing metal sensor plates |
| Battery Status | By Dual Color LED |
| Accuracy | By Dual +/-10% |
| Power supply | 12 Volt Adapter |
| Wrist Strap PASS Range | 0.75 to 10 Meg Ohms |
| Foot Wears PASS Range | 0.75 to 100 Meg ohms |
| Indications Pass | GREEN LED |
| LOW & High fail | RED LED with Buzzer sound |
| Test actuation | By pressing metal sensor plates |
| Battery Status | By Dual Color LED |
| Accuracy | By Dual +/-10% |
| Power supply | 9 Volt Adapter |

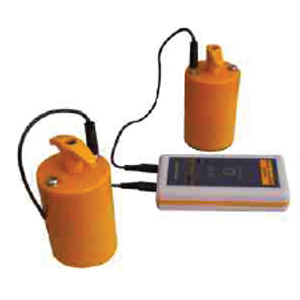

| Measurement Range | <10"3 10 >10"12 Ohms (or) Ohms/sq |
| Measurement Accuracy | Half decade |
| Resolution | One decade |
| Test Voltag | 100V. |
| Indication | Different Color LED's |
| Test actuation | Press To Read Switch |
| Power supply | 9 Volt Battery |
| Low battery threshold | Test Voltage across probes 80V (+/-1V) |
| Low Battery Indication | Flashes by Red 10^13 LED |

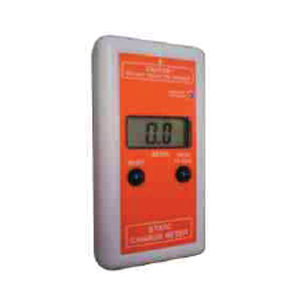

| Measurement Range |
+/- 10kV @ 1 Inch
Range (Accuracy: +/-10%), +/-20kV @ 2 Inch (Accuracy: +/-15%), +/- 30kV @ 3 Inch (Accuracy: +/-20%) |
| Resolution | 100 Volts |
| Indication | 2 ½ Digit LCD Display |
| Test actuation | Press TO read. |
| Power supply | 9 Volt Adapter |
| Battery Status | By Dual color LED |

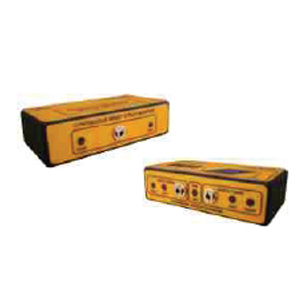

| Pass Threshold | under 4 Meg ohms for wrist straps), Under 10 Meg ohms for MAT |
| Indications |
Green LED for wrist
strap PASS Flashing Red LED for wrist strap FAIL Steady Red LED for mat FAIL |
| Audible alarm | 2 For Fail modes |
| Input power | 12V @ 500 ma DC |
| Accuracy | +/-10% |
| Repeatability | +/-10% |
| Power Supply | 9V Battery |
| Accuracy | +/-10% |
| Resolution | 1 Volt |
| Low Battery Indication | By LCD Display |
| Test Actuation | Touch To Test |
